Atlantic 600 Horizontal Windlass 600W (1200 lbs) - for 1/4" HT-G4 Chain 1/2" Rope - Five Oceans

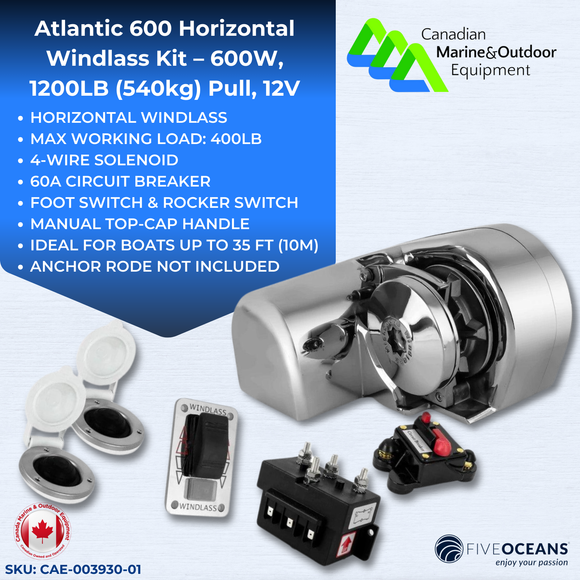

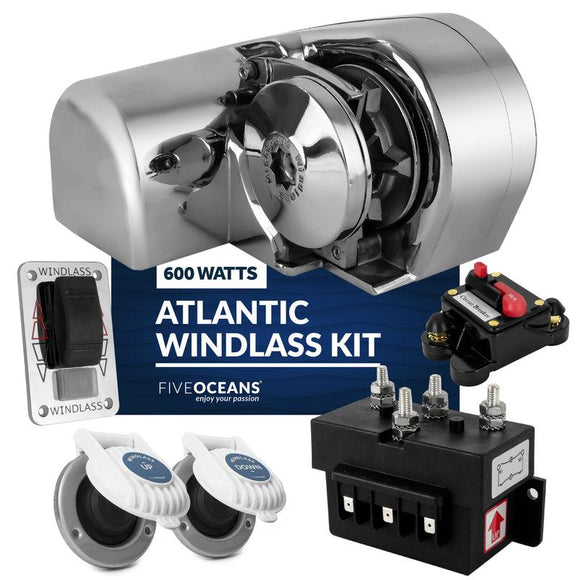

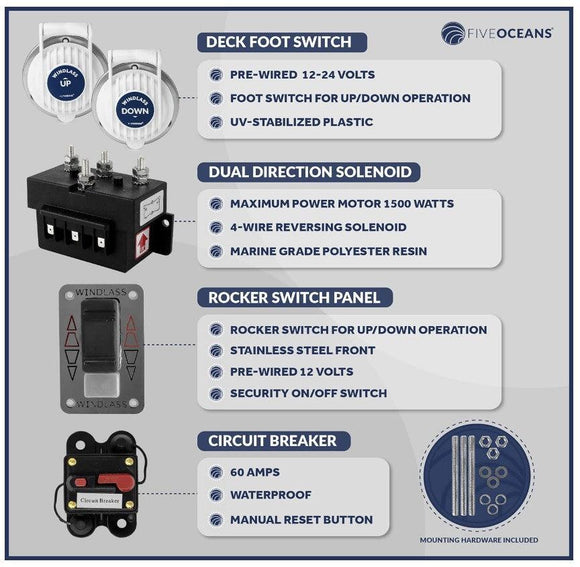

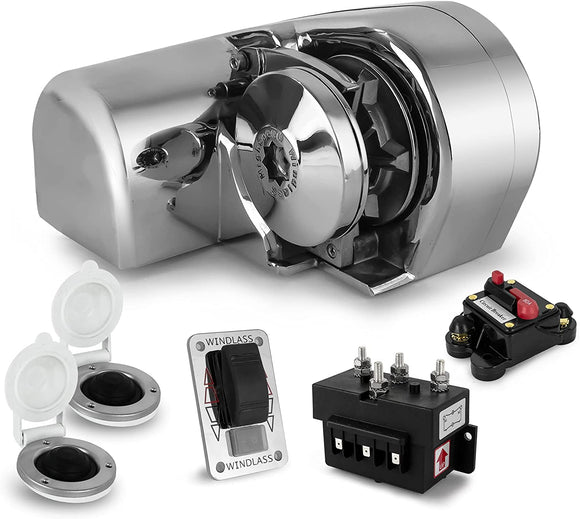

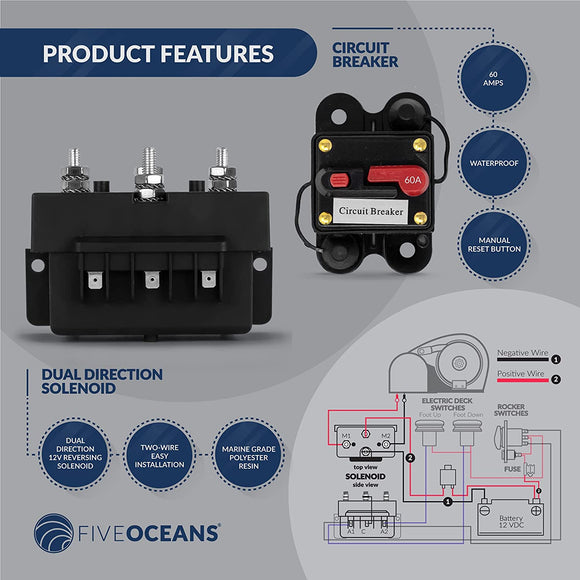

WINDLASS MODEL: Atlantic 600 Series. Horizontal Windlass. Motor Supply Voltage: 12V. Motor Power: 600W. Gypsy: Chain and Rope. Includes 4-Wire Solenoid, 60A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

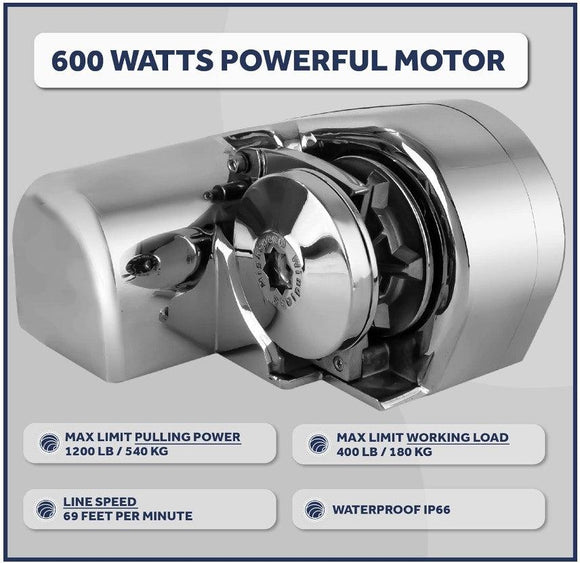

HIGH-PERFORMANCE MOTOR: The High-Power 600 Watts Motor provides a Maximum Limit Pulling Power of 1200 Lb / 540 Kg and a Max Limit Working Load of 400 Lb / 180 Kg. It allows a Line speed of 69 feet per minute. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they are able to withstand the high-load strain.

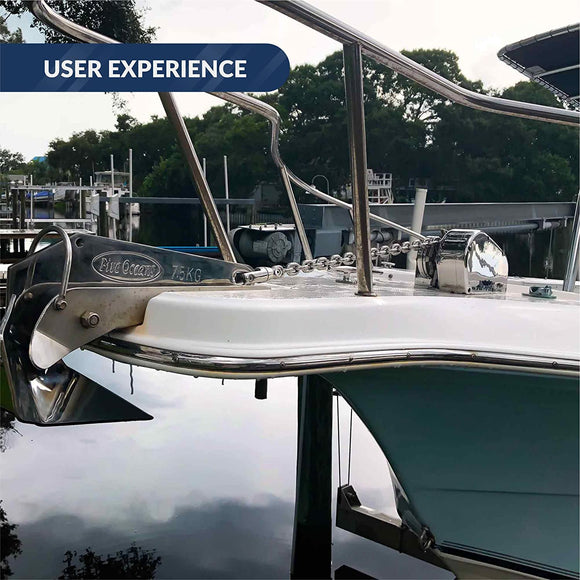

HORIZONTAL WINDLASS INSTALLATION: On-Deck installation. 3 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. To offer the best performance and functionality, we recommend this Horizontal Windlass 600W for boats up to 35 ft / 10 m depending on the boat style.

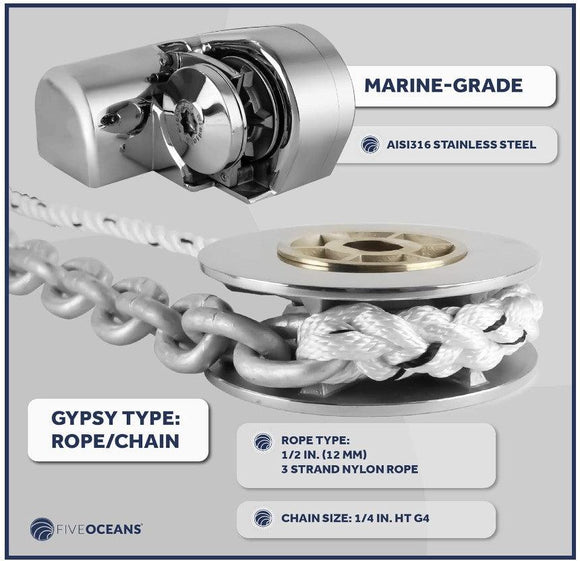

RECOMMENDED ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch (7 mm) HT G4. Rope: 1/2 Inch (12mm) - 3 Strand (Anchor rode not included)

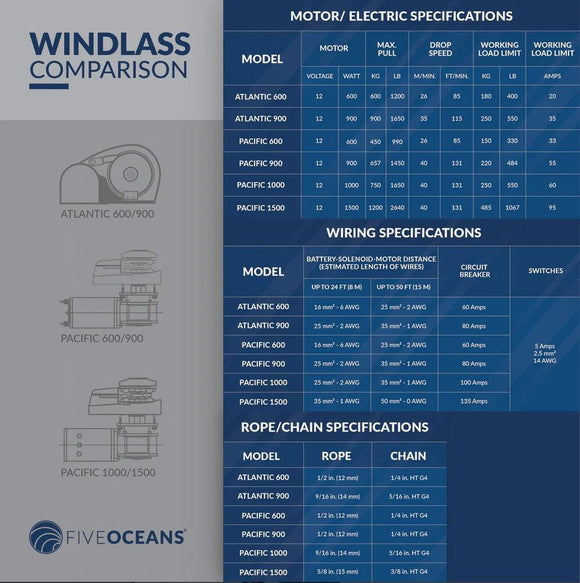

TECHNICAL SPECIFICATIONS:

• Motor Power: 600 Watts
• Power Supply: 12V DC
• Maximum Limit Pulling Power: 1200 Lb / 540 Kg
• Pulling Power: 396 Lb / 180 Kg
• Maximum Limit Working Load: 400 Lb / 180 Kg
• Working Load: 132 Lb / 60 Kg
• Line Speed: 69 Feet per Minute
• Current Draw: 45 Amps
• Circuit Breaker: 60 Amps
• Dual Gypsy: Chain and Rope
• Chain: 1/4 Inch HT G4
• Rope: 1/2 Inch (12mm) - 3 Strand

[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.

Five Oceans/Baron USA/ Canadian Marine & Outdoor Equipment will not be responsible if the products are used under unusual weather and sea conditions.

DOWNLOAD PRODUCT MANUAL(S):

PRODUCT NUMBER: CAE-003930-01
