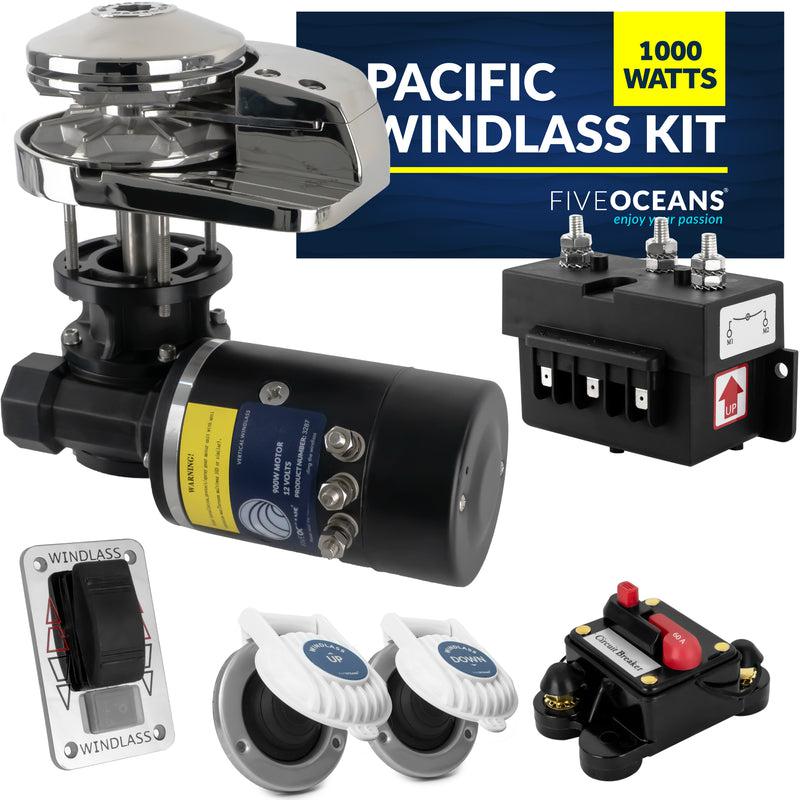

Pacific 1000 Vertical Anchor Windlass 1000W for 5/16" HT-G4 Chain and 9/16" Rope - Five Oceans

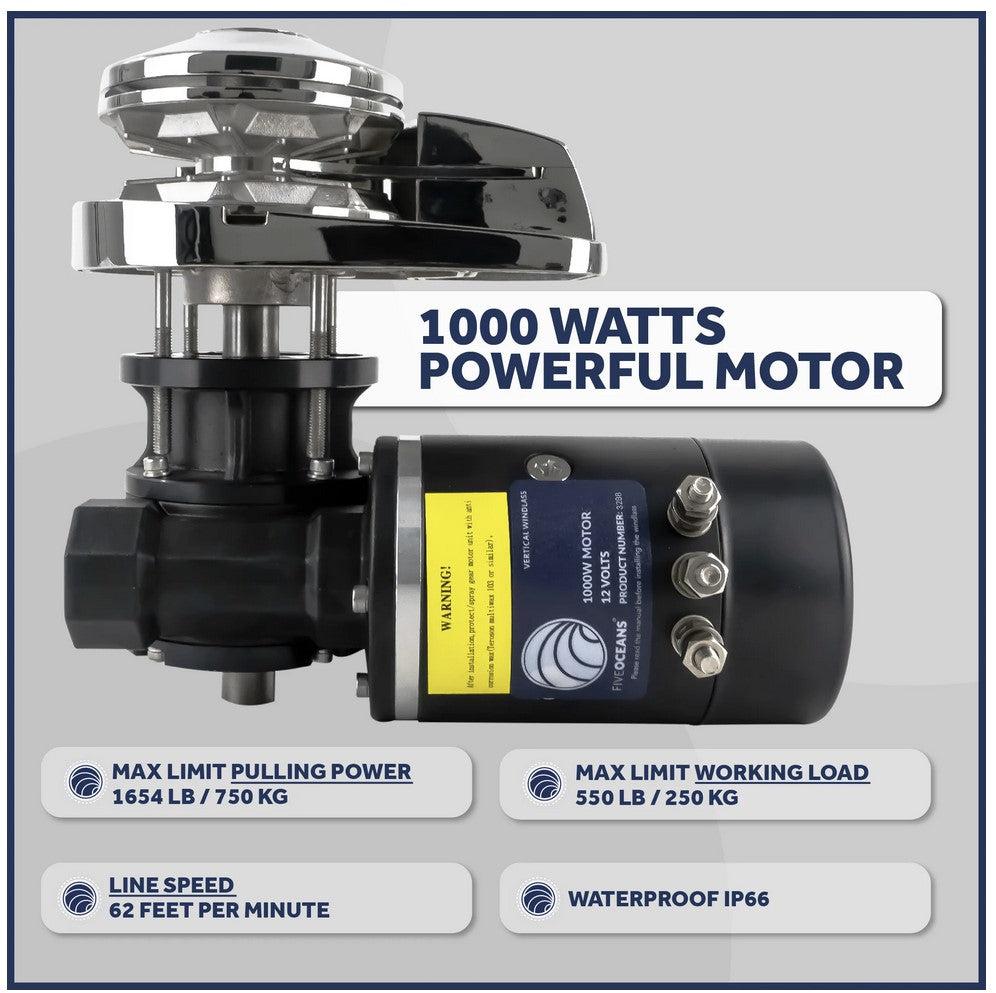

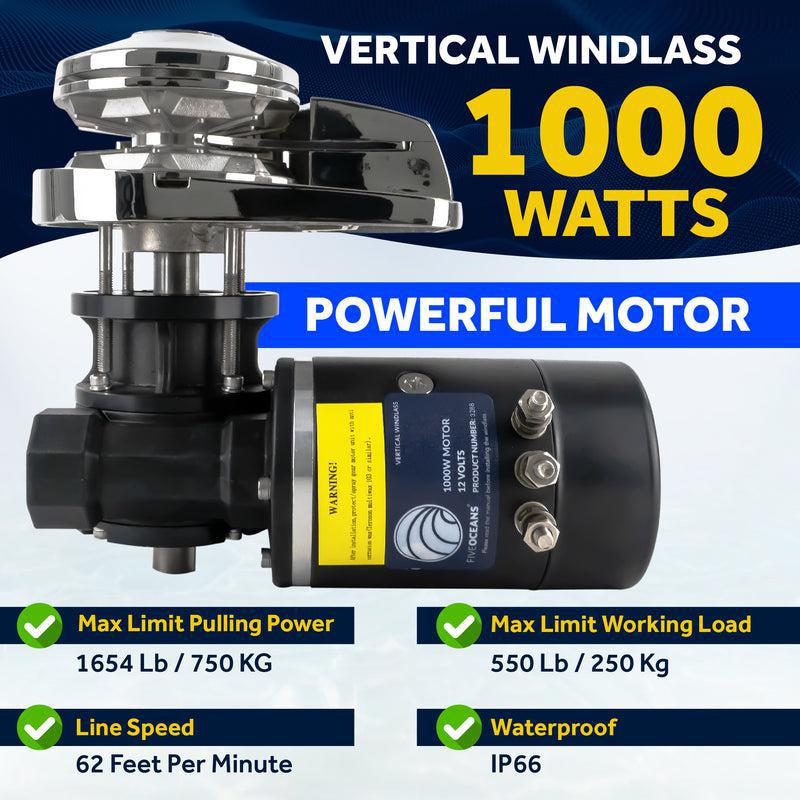

HIGH-PERFORMANCE MOTOR: The High-Power 1000 Watts provides a maximum pulling power of 1654 Lb / 750 Kg and a maximum working load of 550 Lb / 250 Kg. It allows a drop speed of 62 feet per minute. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.

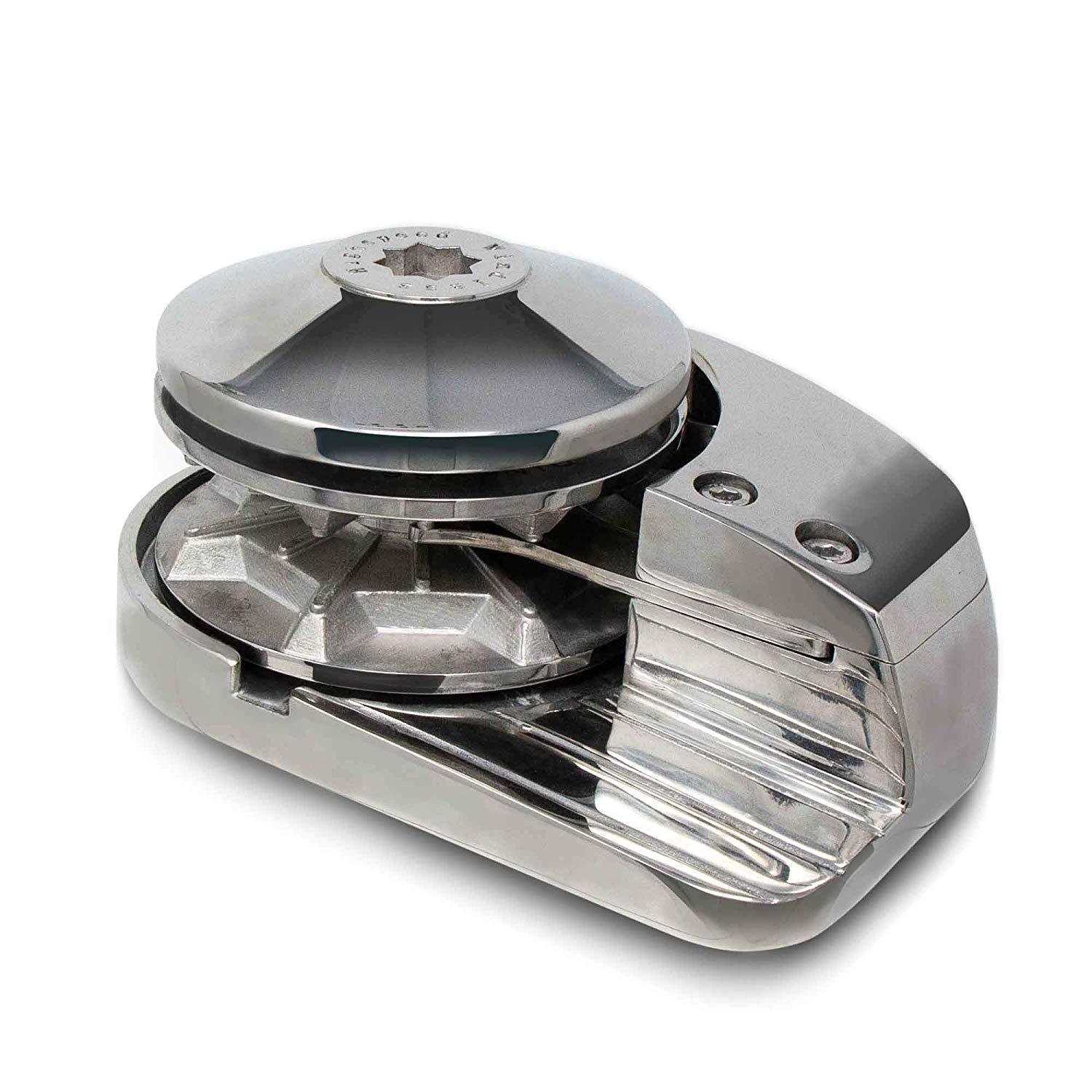

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.

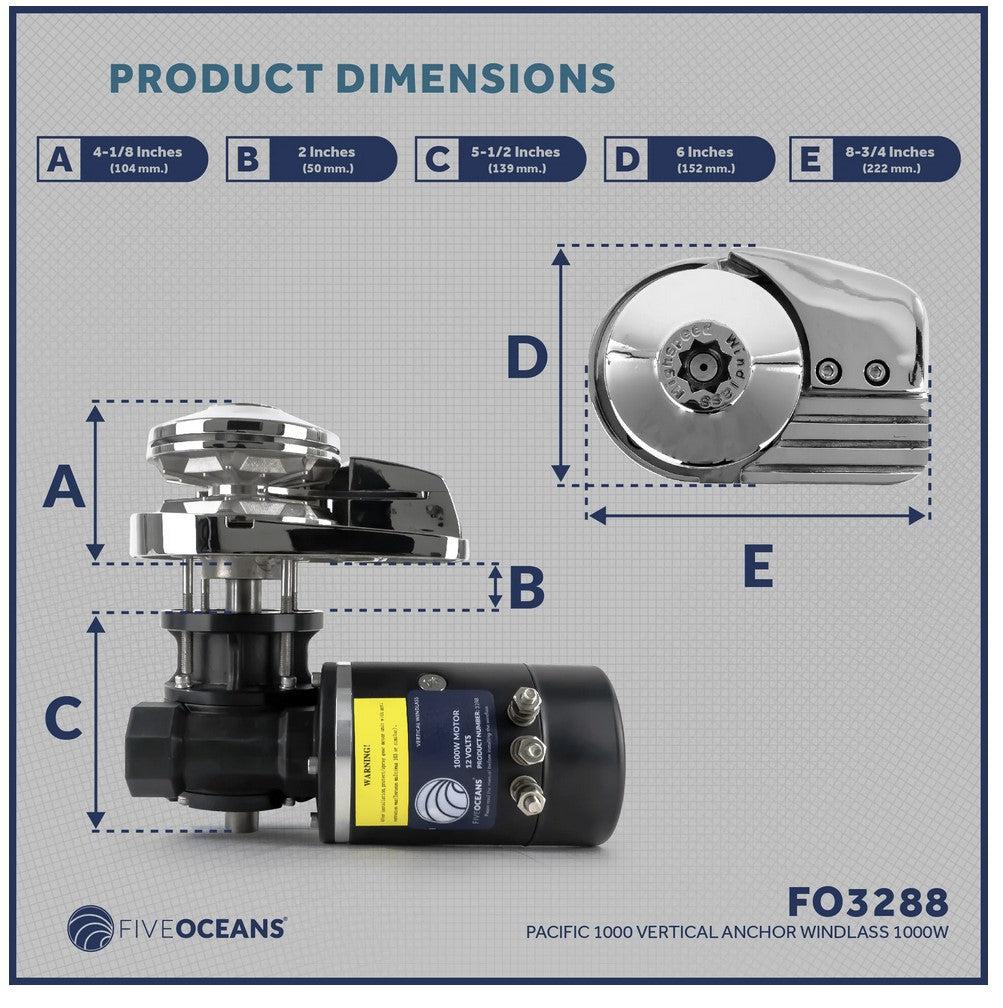

VERTICAL WINDLASS INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. Deck thickness up to 2 Inches (50 mm). Features a vertical rotation about the deck which allows a reduced volume above the deck as the electric motor and the gearbox are sitting in the chain locker. To offer the best performance and functionality, we recommend this Vertical Windlass 1000 Watts for boats up to 50 Ft / 15 m depending on the boat style.

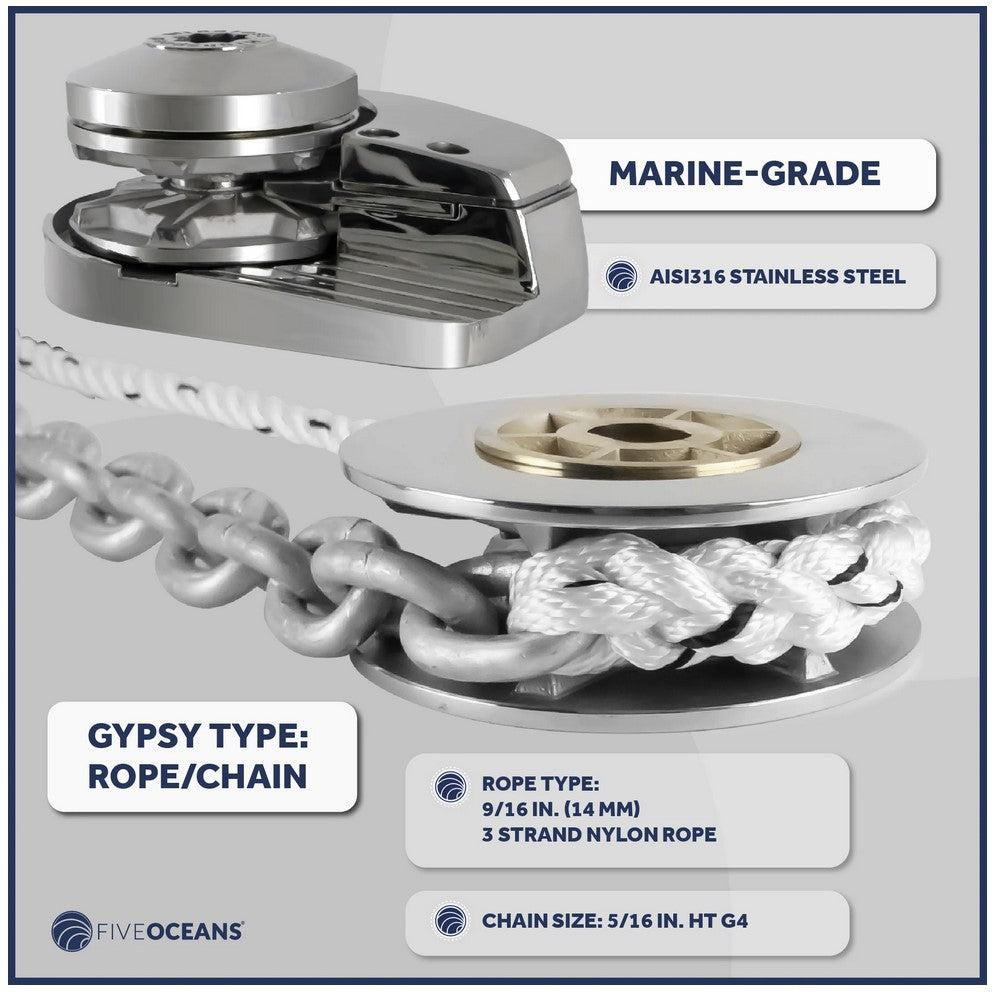

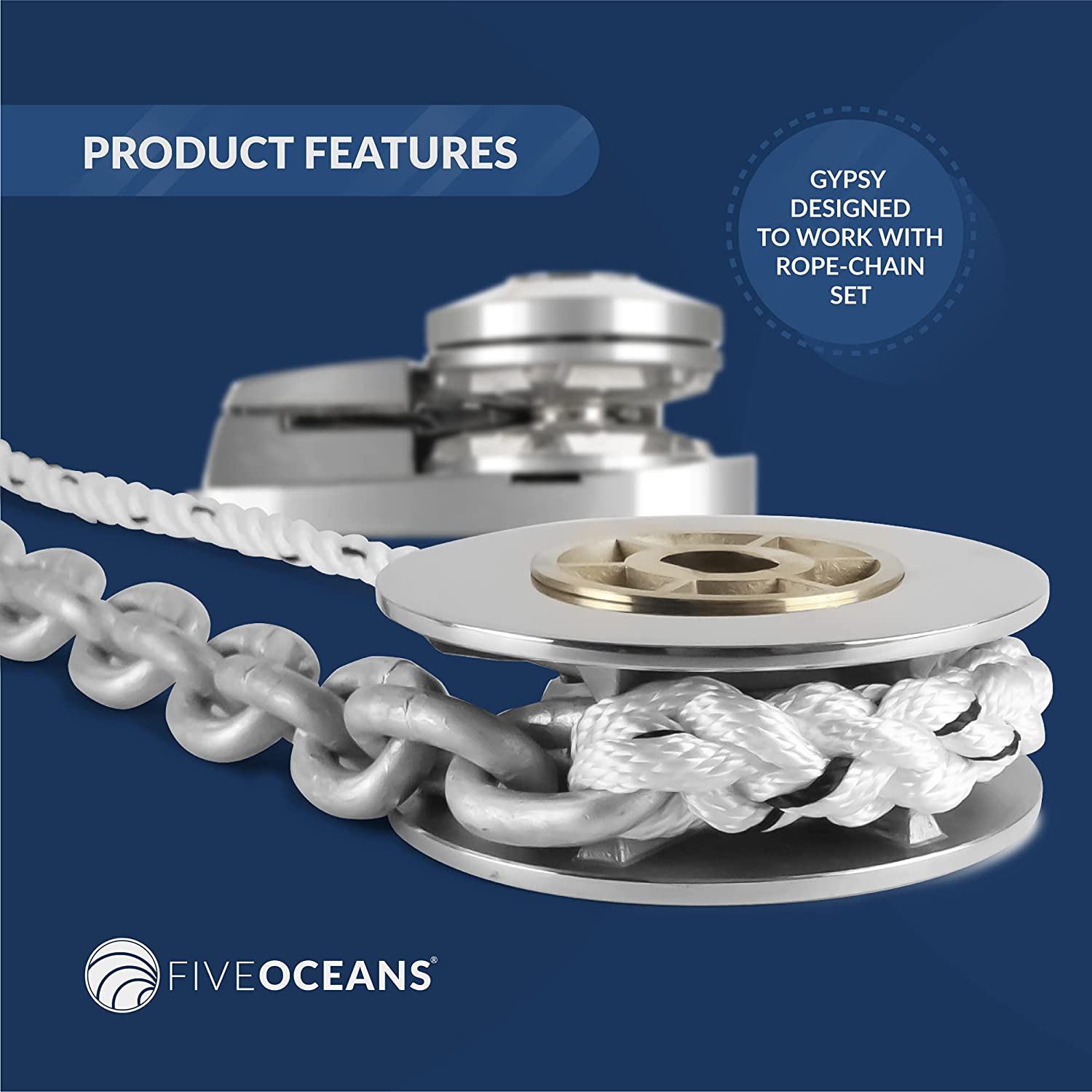

RECOMMENDED ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 5/16 Inch HT G4. Rope: 9/16 Inch (14mm) - 3 Strand.  The Windlass manages the rope and chain with the use of a special spring-loaded tension arm (Anchor rode NOT included in kit)

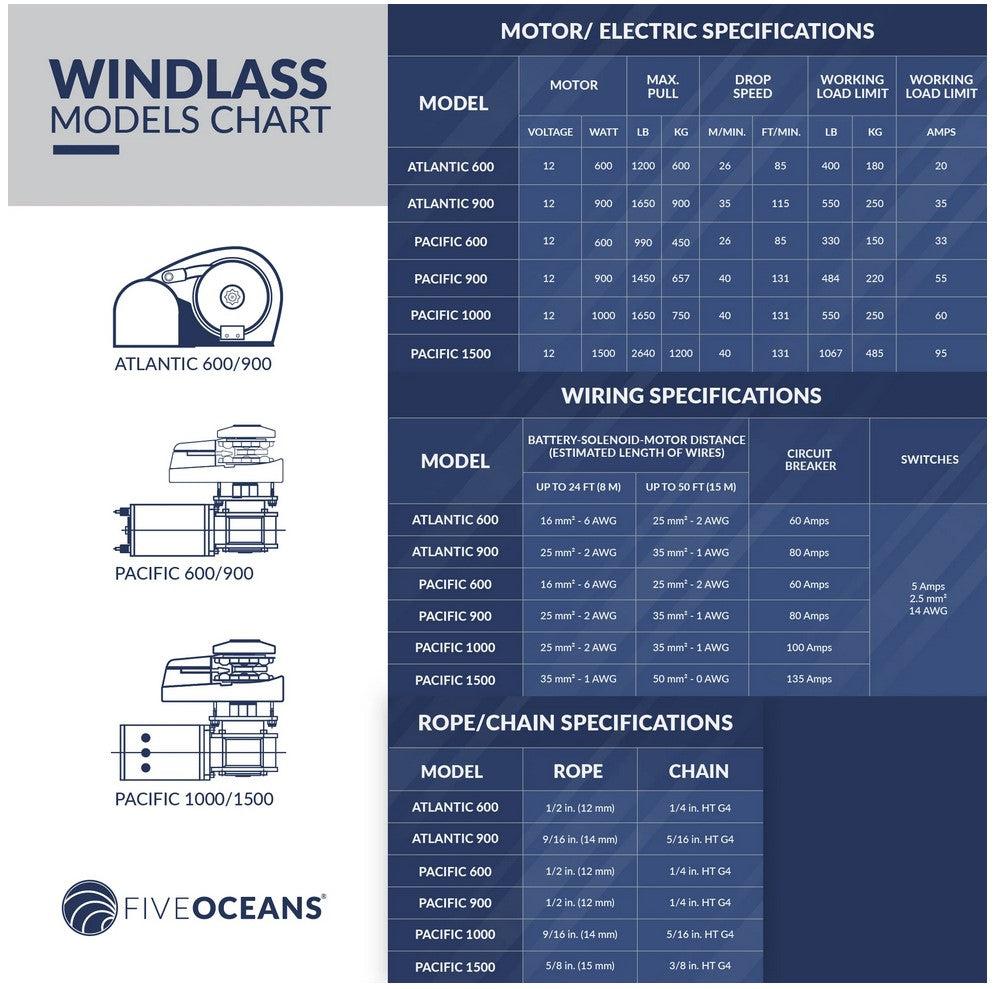

TECHNICAL SPECIFICATIONS:

• Motor Power: 1000 Watts
• Power Supply: 12V DC
• Maximum Limit Pulling Power: 1654 Lb / 750 Kg
• Pulling Power: 550 Lb / 250 Kg
• Maximum Limit Working Load: 550 Lb / 250 Kg
• Working Load: 187 Lb / 85 Kg
• Line Speed: 62 Feet per Minute
• Current Draw: 65 Amps
• Circuit Breaker: 100 Amps
• Dual Gypsy: Chain and Rope
• Chain: 5/16 Inch (8 mm) HT G4
• Rope: 9/16 Inch (14mm) - 3 Strand

[Important Notice]: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.

Five Oceans/Baron USA will not be responsible if the products are used under unusual weather and sea conditions.

DOWNLOAD PRODUCT MANUAL by clicking here

DOWNLOAD PRODUCT TEMPLATE by clicking here

PRODUCT NUMBER: CAE-003288-01
