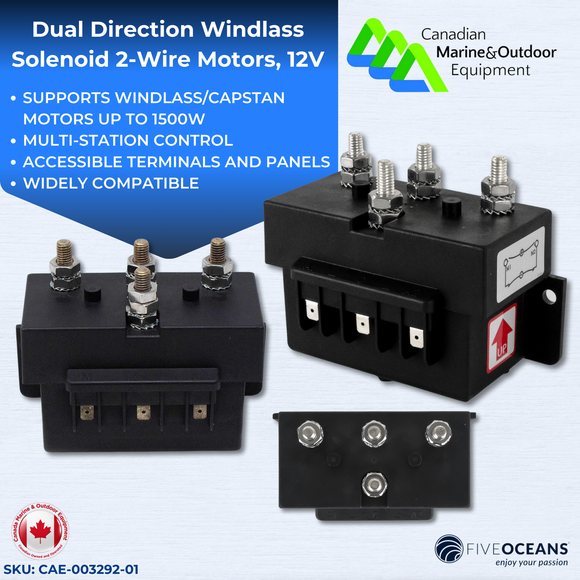

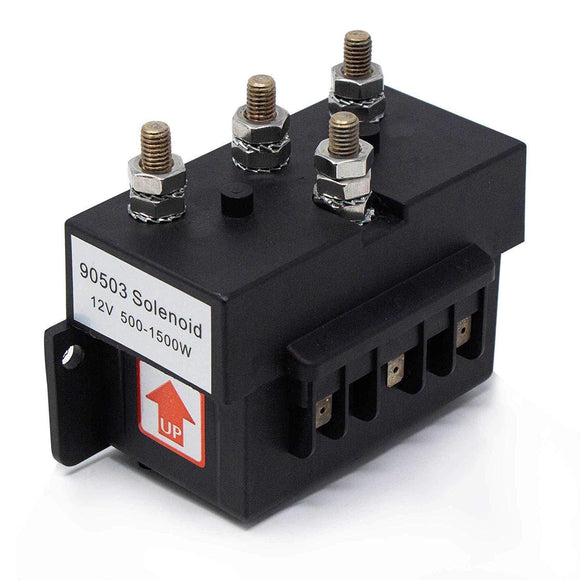

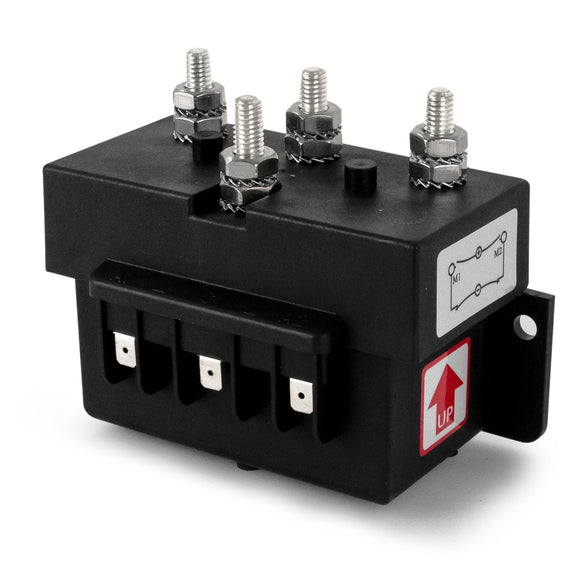

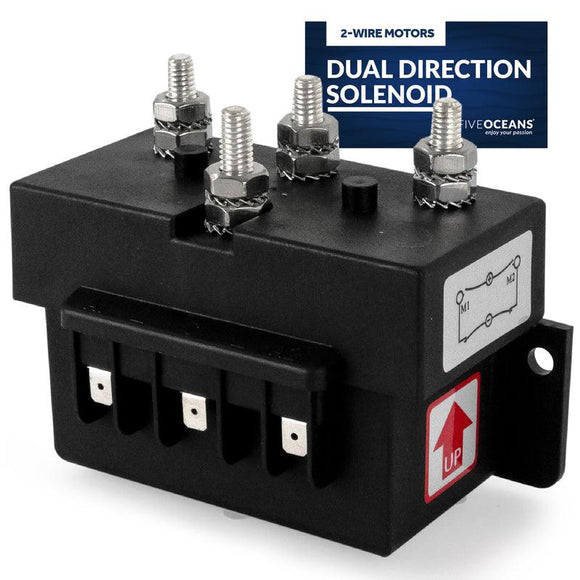

Dual Direction Windlass Solenoid 2-Wire Motors, 12V

CAPACITY: This Five Oceans Windlass Solenoid control box operates anchor windlass systems with maximum power of the windlass/Capstan motor up to 1500 watts. It's a dual direction 12 Volts (2-wire motors) reversing solenoid that is reliable and compact in size.

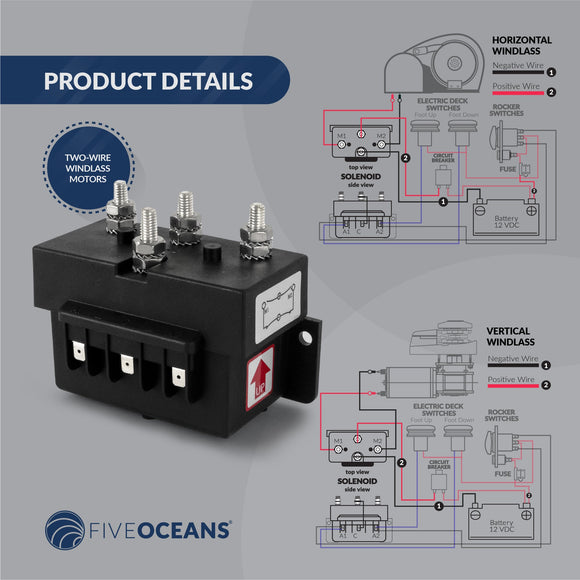

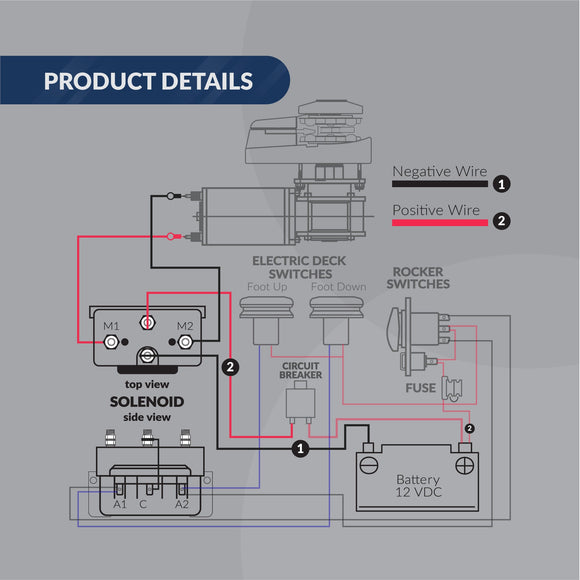

ALLOW MULTIPLE CONTROL STATIONS: The external connections on the solenoid make them very easy to install. Our solenoid allows multiple control stations using foot switches and rocker/toggle switches.

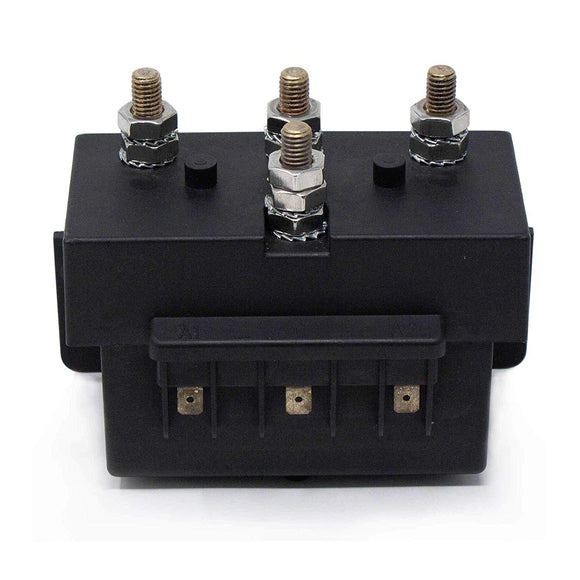

EASY INSTALLATION: The entire unit has been designed to simplify and speed up the various electrical connections. For this purpose, there is no need to open and/or pierce the container, as all the terminals and the panel for the electrical connections are perfectly accessible from the outside.

MARINE-GRADE MATERIALS: Outer construction in self-extinguishing polyester resin, resistant to shock and marine corrosion.

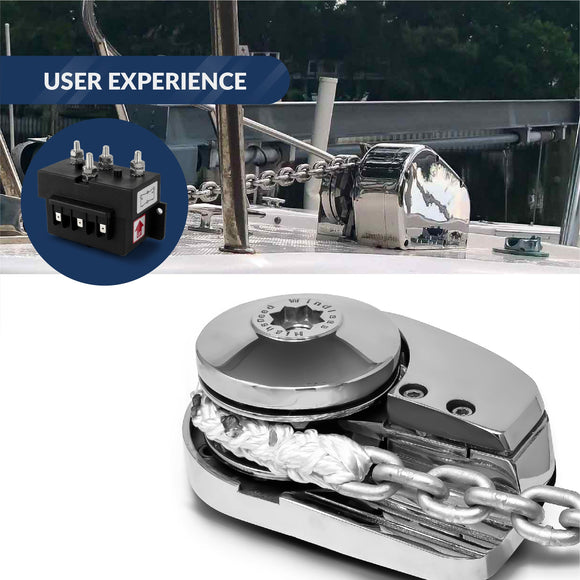

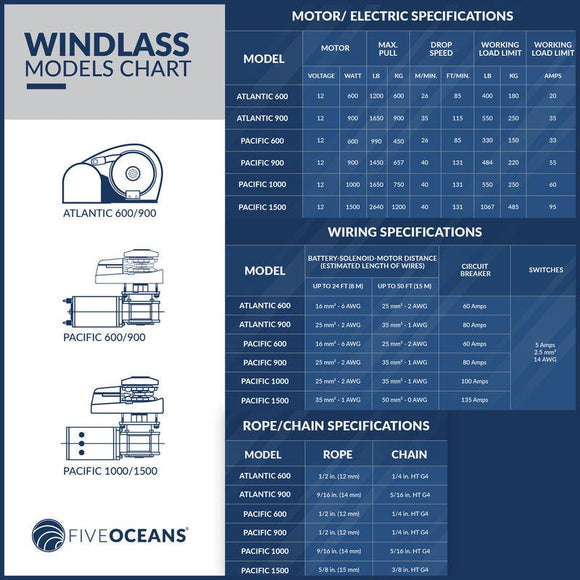

COMPATIBILITY: We highly recommend this control box for the Five Oceans Atlantic and Pacific windlass series of 600W/900W or any other brand windlass with 2-wire motors.

SPECIFICATIONS:

• Voltage: 12V DC
• Wire Motor: Two (2)
• Sealed and Corrosion Resistant: Yes

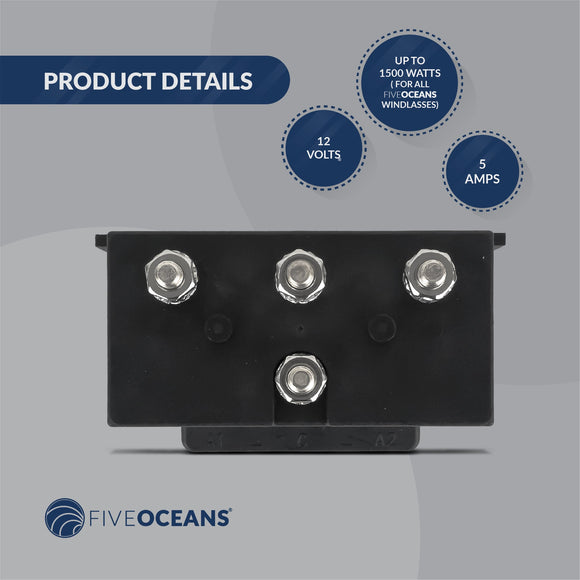

• Maximum Power of the windlass/capstan motor: 1500 Watts

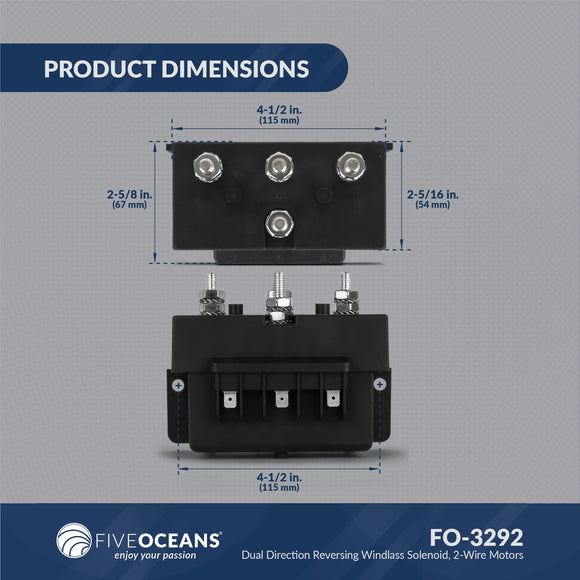

• Dimension: 5 1/8" (30mm) x 4 5/16" (110mm) x 2 3/4" (70mm)

Replacement Part For:
600 Watts Pacific Windlass Series (CAE-003930/3931)
900 Watts Pacific Windlass Series (CAE-003287/3442)

PRODUCT CODE CAE-003292-01
