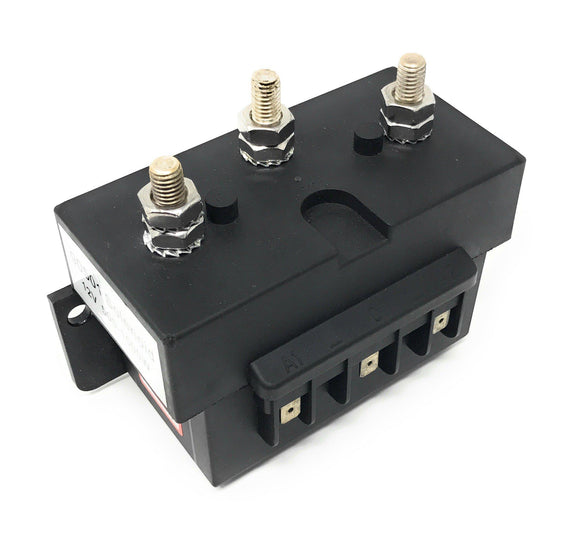

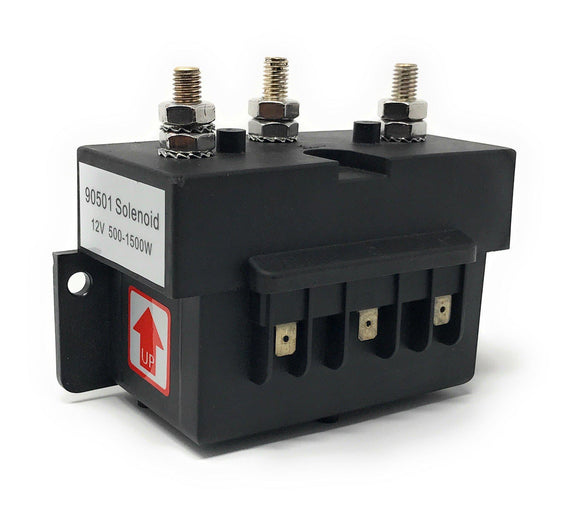

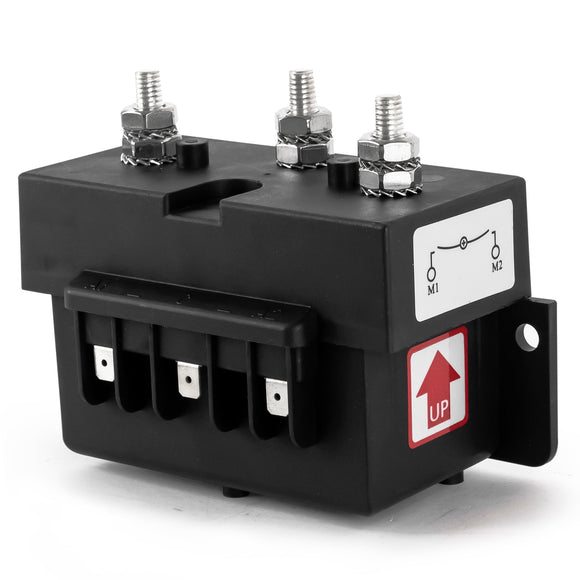

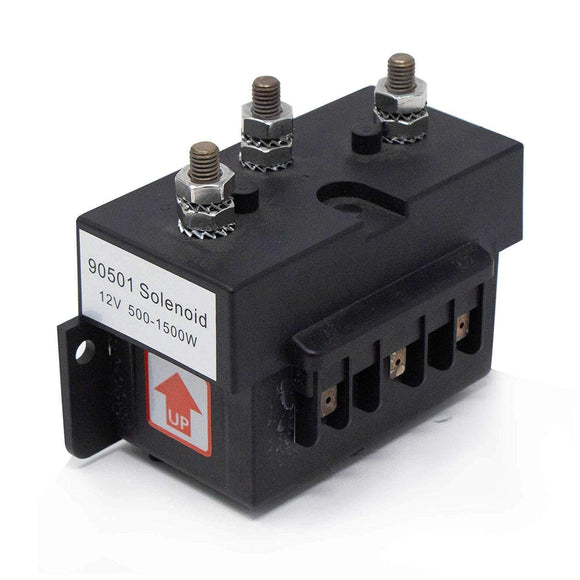

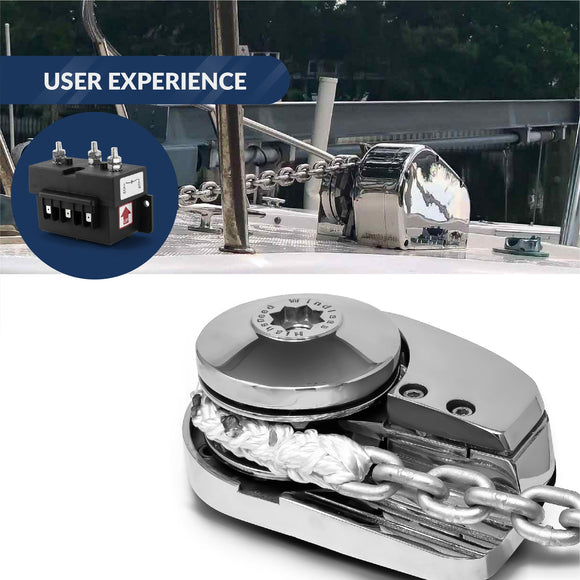

Dual Direction Windlass Solenoid 3-Wire Motors, 12V

CAPACITY: This Five Oceans Windlass Solenoid control box operates anchor windlass systems with maximum power of the windlass/Capstan motor up to 1500 watts. It's a dual direction 12 Volts (3-wire motors) reversing solenoid that is reliable and compact in size.

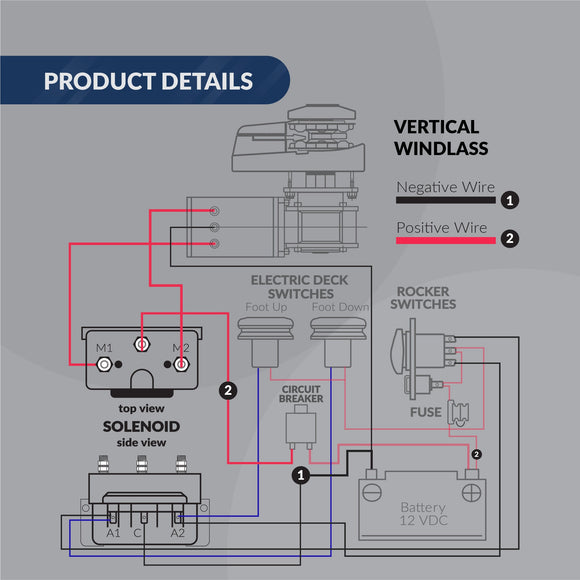

ALLOW MULTIPLE CONTROL STATIONS: The external connections on the solenoid make them very easy to install. Our solenoid allows multiple control stations using foot switches and rocker/toggle switches.

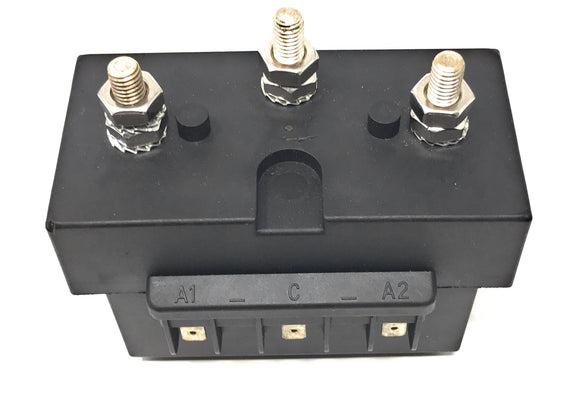

EASY INSTALLATION: The entire unit has been designed to simplify and speed up the various electrical connections. For this purpose, there is no need to open and/or pierce the container, as all the terminals and the panel for the electrical connections are perfectly accessible from the outside.

MARINE-GRADE MATERIALS: Outer construction in self-extinguishing polyester resin, resistant to shock and marine corrosion.

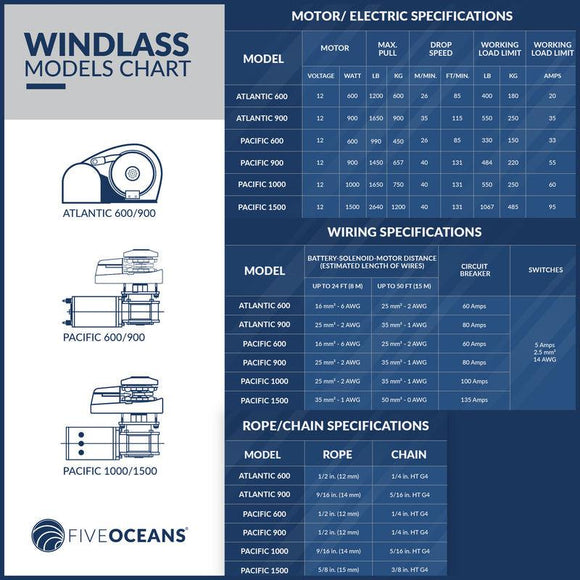

COMPATIBILITY: We highly recommend this control box for the Five Oceans Atlantic and Pacific windlass series of 600W/900W or any other brand windlass with 3-wire motors.

SPECIFICATIONS:

• Voltage: 12V DC
• Wire Motor: Three (3)
• Sealed and Corrosion Resistant: Yes
• Maximum Power of the windlass/capstan motor: 1500 Watts
• Dimension: 5 1/8" (30mm) x 4 5/16" (110mm) x 2 3/4" (70mm)

Replacement Part For:
1000 Watts Pacific Windlass Series (CAE-003288-01)
1500 Watts Pacific Windlass Series (CAE-003444-01)

PRODUCT CODE: CAE-003293-01
